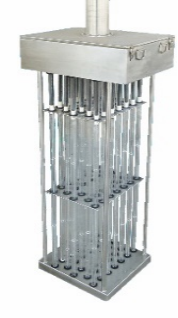

NLQV vertical rack (channel vertical mechanical cleaning UV system) 价格:

System composition: rack type UV module, ballast cabinet, central control cabinet (including man-machine interface/power distribution), wiring electrical box, cleaning drive system (air compressor), water level control system, mounting frame.

详细内容 规格参数


 Pros:


1. Staggered arrangement of lamps: form a turbulent flow of water to improve the uniformity of irradiation and disinfection efficiency.

 2. Modular on-demand start and stop: turn off the lamp module group proportionally to save energy.

 3. Vertical applicability: high-flow projects.


4. Dry sealing & convenient maintenance: the sealing end of the lamp tube is not immersed in water, avoiding water ingress in the casing; It is quick and easy to repair and replace a single lamp, without the need to propose the entire module.


5. Extended life: The dry seal design significantly improves the working condition of the lamp and is more conducive to extending the service life.



 Vertical in-line mechanical cleaning



规格参数:

型式

型号

最大流量
m3/h)

总功率
W)

额定电压
V)

额定频率
Hz)

工作电压范围
V)

灯管使用寿命
h)

明渠式

(垂直式)

NLQV-10K

416.66

根据项目情况配置

380V

50

380

1±5%)

12000

NLQV-30K

1250.00

NLQV-50K

2083.33

NLQV-70K

2916.66

NLQV-100K

4166.66

NLQV-200K

8333.33
