Small ducted low-pressure mercury lamp system

System composition: vertical UV module, ballast cabinet, central control cabinet (including man-machine interface/power distribution), wiring electrical box, cleaning drive system (air compressor), water level control system, mounting frame.

上一个下一个

详细内容 规格参数

1. Application fields: water purification, secondary water supply, reclaimed water, reclaimed water, etc.

2. Processing capacity range: 50 tons/day - 10,000 tons/day.

3. Electronic control system: start and monitor UV-C lamps.

4. Monitoring and remote: optional online monitoring instrument and remote control system.

5. Cleaning method: manual or mechanical automatic UV-C lamp cleaning device can be selected.

6. Easy installation: It can be installed with a fixed or adjustable base, which is connected in series between pipes (flange/threaded connection).

7. Interface customization: The diameter and direction of the inlet and outlet pipes can be customized.

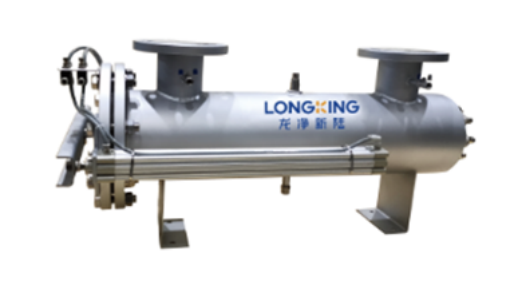

Small pipeline type low pressure mercury lamp UV equipment

规格参数：

型式	型号	最大流量（m³/h）	总功率（W）	进出水管径	设备承压（Mpa）	额定电压（V）	额定功率（Hz）	工作电压范围（V）	灯管使用寿命（h）
管道式法兰连接	NLC-150	6.25	80	DN32	0.8	220/380	50	220/380 （1±5%）	≥9000
	NLC-300	12.50	170	DN50	0.8
	NLC-500	20.83	255	DN65	0.8
	NLC-800	33.33	425	DN80	0.8
	NLC-1500	62.50	510	DN100	0.8
	NLC-2500	104.16	680	DN150	0.8
	NLC-3000	125.00	1600	DN150	0.8
	NLC-4000	166.66	1920	DN200	0.8
	NLC-5000	208.33	2560	DN200	0.8
	NLC-7000	291.66	3840	DN250	0.8
	NLC-10K	416.66	5120	DN300	0.8
